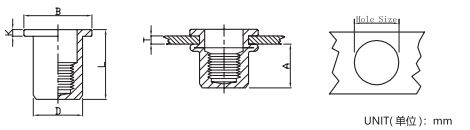

螺紋 Thread |
編號
P/N
|
T(GRIP RANGE) Min Max |
A Rer |
Hole Size ﹢0.1 0 |
D | B | K | L |
M3 | FHRB-TT-0630 | 1.0-3.0 | 10 | 9.0 | 8.9 | 12.0 | 5.0 | 18.0 |
M8 | FHRB-TT-0835 | 1.0-3.5 | 11.5 | 11.0 | 10.9 | 16.0 | 6.0 | 20.0 |
M10 | FHRB-TT-1040 | 1.0-4.0 | 12.5 | 14.3 | 14.2 | 18.0 | 6.0 | 22.5 |
