English
|
螺紋
Thread
|
編號
P/N
|

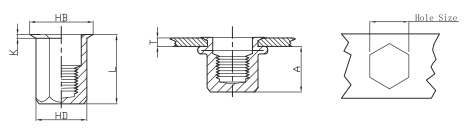

?T(GRIP RANGE) Min Max |
A Rer |
Hole Size +0.1 0 |
D +0.07 -0.1 |
B | K | L |
| M4 | RHH-FHBC/SS-0425 | 0.5-2.5 | 12.3 | 6.0 | 5.9 | 7.0 | 0.5 | 16.0 |
| M5 | RHH-FHBC/SS-0530 | 0.5-3.0 | 15.2 | 7.0 | 6.9 | 8.0 | 0.5 | 20.0 |
| M6 | RHH-FHBC/SS-0635 | 0.5-3.5 | 14.5 | 9.0 | 8.9 | 10.0 | 0.6 | 20.5 |
| M8 | RHH-FHBC/SS-0840 | 1.0-4.0 | 17.0 | 11.0 | 10.9 | 12.0 | 0.65 | 23.0 |
| M10 | RHH-FHBC/SS-1045 | 1.0-4.5 | 20.0 | 13.0 | 12.9 | 14.5 | 0.75 | 28.5 |
