螺紋
Thread
|
編號
P/N
|

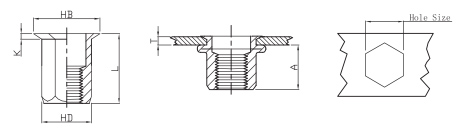

T(GRIP RANGE) Min Max |
A Rer |
Hole Size +0.1 0 |
D +0.07 -0.1 |
B | K | L |
| M3 | RHH-FHB/SS-0325 | 0.5-1.5 | 5.0 | 5.0 | 4.9 | 6.0 | 0.5 | 8.5 |
| M4 | RHH-FHB/SS-0425 | 0.5-2.5 | 6.7 | 6.0 | 5.9 | 7.0 | 0.5 | 11.0 |
| M5 | RHH-FHB/SS-0530 | 0.5-3.0 | 9.0 | 7.0 | 6.9 | 8.0 | 0.5 | 14.5 |
| M6 | RHH-FHB/SS-0635 | 1.0-3.5 | 10.0 | 9.0 | 8.9 | 10.0 | 0.6 | 16.0 |
| M8 | RHH-FHB/SS-0840 | 1.0-4.0 | 11.5 | 11.0 | 10.9 | 12.0 | 0.65 | 18.0 |
| M10 | RHH-FHB/SS-1035 | 1.0-3.5 | 12.5 | 12.0 | 11.9 | 13.5 | 0.75 | 20.0 |
| M12 | RHH-FHB/SS-1240 | 1.0-4.0 | 15.5 | 16.0 | 15.9 | 17.5 | 1.0 | 25.0 |
