螺紋
Thread
|
編號
P/N
|

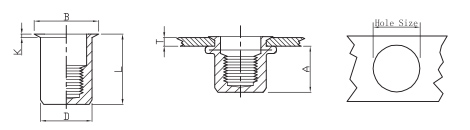

T(GRIP RANGE) Min Max |
A Rer |
Hole Size +0.1 0 |
D +0.07 -0.1 |
B | K | L |
| M4 | RH-RBC/SS-0420 | 0.5-2.0 | 11.0 | 6.0 | 5.9 | 7.0 | 0.5 | 15.0 |
| M5 | RH-RBC/SS-0520 | 0.5-2.0 | 12.5 | 7.0 | 6.9 | 8.0 | 0.5 | 16.5 |
| M6 | RH-RBC/SS-0625 | 0.5-2.5 | 15.5 | 9.0 | 8.9 | 10.0 | 0.6 | 20.5 |
| M8 | RH-RBC/SS-0830 | 0.5-3.0 | 17.6 | 11.0 | 10.9 | 12.0 | 0.65 | 23.0 |
| M10 | RH-RBC/SS-1035 | 1.0-3.5 | 18.3 | 13.0 | 12.9 | 14.0 | 0.7 | 24.5 |
