螺紋
Thread
|
編號(hào)
P/N
|

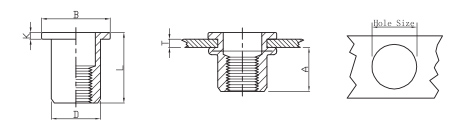

T(GRIP RANGE) Min Max |
A Rer |
Hole Size +0.1 |
D +0.07 -0.1 |
B | K | L |
| M4 | FH-RB/SS-0420 | 0.5-2.0 | 6.0 | 6.0 | 5.9 | 8.5 | 0.8 | 10.5 |
| M5 | FH-RB/SS-0525 | 0.5-2.5 | 7.5 | 7.0 | 6.9 | 10.0 | 1.0 | 13.0 |
| M6 | FH-RB/SS-0630 | 0.5-3.0 | 9.2 | 9.0 | 8.9 | 12.3 | 1.3 | 15.5 |
| M8 | FH-RB/SS-0835 | 1.0-3.5 | 11.5 | 11.0 | 10.9 | 15.0 | 1.5 | 18.5 |
| M10 | FH-RB/SS-1040 | 1.0-4.0 | 12.5 | 13.0 | 12.9 | 17.0 | 1.6 | 21.0 |
